When a structure has to stand firm through wet seasons, coastal salt spray, demanding industrial air, and years of hard service, the material choice matters more than most people realize. Tianjin YuJie Steel Pipe Trading Co., Ltd. supplies a range of hot dip galvanized rectangular and square steel tubes that combine clean geometry, dependable mechanical properties, and a protective zinc layer that actually lasts. These hollow sections are not simply coated — they are metallurgically bonded with zinc through full immersion, so the finished product resists corrosion from the outside and often from the inside as well.

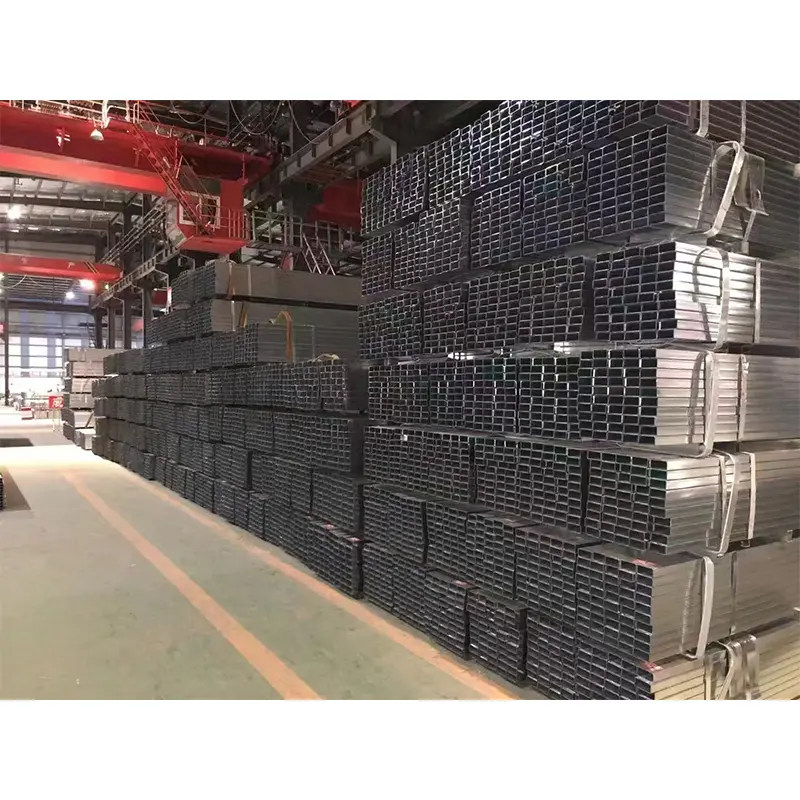

Hot Dip Galvanized Rectangular and Square Steel Tube in warehouse at Tianjin YuJie Steel Pipe Trading Co., Ltd." style="max-width:100%;height:auto;">
The hot dip galvanized rectangular and square steel tube is, at its core, a structural hollow profile with four flat sides and a right-angle cross section. It is produced from cold-formed or hot-rolled steel strip, welded along the longitudinal seam, sized to precise dimensions, and then immersed in molten zinc. After the galvanizing bath, the tube comes out with a tough, continuous zinc-iron alloy layer on every surface, including edges, weld zones, and internal walls.
This product serves as framing for buildings, support members for solar panel structures, posts for fencing and guardrails, columns for carports and canopies, structural reinforcement for agricultural sheds, machinery bases, greenhouse frames, conveyor supports, and dozens of other load-bearing or weather-exposed applications. Engineers, fabricators, and contractors turn to it when they need the clean appearance and predictable strength of a rectangular or square hollow section, but with far better corrosion resistance than bare or painted steel can deliver.
Each batch at Tianjin YuJie Steel Pipe Trading Co., Ltd. begins with carefully selected base steel, commonly Q195, Q235, Q345B, or equivalent international grades. The strip is roll-formed into a square or rectangular profile, welded using high-frequency induction welding, and then straightened and cut to the required length. After that, the tube goes through surface cleaning, pickling, fluxing, and the hot dip galvanizing step. The result is a fully enclosed section with a zinc coating that typically ranges from 40 to 85 microns on standard products, with heavier coatings available for aggressive environments.
Because the galvanizing process covers both interior and exterior surfaces when the design allows proper drainage and venting, the tube resists hidden corrosion that often starts inside untreated hollow sections. That is a major reason why this product is preferred for outdoor pipe fences, agricultural equipment, and structural frames in humid or coastal regions.
Corrosion is not just a surface issue for structural steel. When moisture collects inside a closed profile, rust can progress silently and weaken the section from within. Traditional painting or electro-galvanizing may leave thin spots at weld seams, corners, or interior surfaces. Hot dip galvanizing solves this by dipping the entire fabricated tube into molten zinc at approximately 450 °C. The zinc reacts with the steel to form multiple alloy layers that are harder and more abrasion-resistant than the outer pure zinc layer.
The hot dip galvanized rectangular and square steel tube from Tianjin YuJie Steel Pipe Trading Co., Ltd. therefore provides three levels of protection. First, the zinc coating acts as a physical barrier that isolates the steel from moisture, oxygen, and corrosive chemicals. Second, if the coating is scratched or cut, the surrounding zinc corrodes preferentially and protects the exposed steel galvanically. Third, the alloy layers are extremely durable, so minor mechanical damage during transport or installation does not immediately compromise the protection.
Imagine a contractor working on an agricultural facility in a rainy region. Ordinary painted steel tubes may look acceptable for the first few months, but rust appears at the welds, under brackets, and where water collects. The client calls back for touch-up painting, then for replacement of corroded posts within a few years. The total cost of maintenance and downtime becomes far higher than the original material cost. A similar situation occurs with solar farm structures, fence lines, livestock enclosures, and coastal walkway frames.
The solution is to specify a hot dip galvanized rectangular and square steel tube from the start. The zinc layer is uniform, including corners and longitudinal weld seams. The internal surface is also protected when proper drain holes are present. This reduces or eliminates the recurring maintenance cycle, improves safety, and keeps the structure looking professional for decades rather than months.
Below are the typical specifications available from Tianjin YuJie Steel Pipe Trading Co., Ltd. These can be adjusted according to project requirements, but they give a clear reference for ordering and design.
| Specification | Details |
|---|---|
| Section Shape | Square and rectangular hollow sections |
| Outer Dimension Range | 20 mm × 20 mm up to 500 mm × 300 mm, depending on wall thickness |
| Wall Thickness | 1.2 mm to 20 mm |
| Length | 5.8 m, 6 m, 11.8 m, 12 m standard; custom lengths available |
| Zinc Coating Mass | Typically 275 g/m² to 600 g/m² (40–85 µm); heavier coatings on request |
| Base Material | Q195, Q235, Q345B, S235JR, S355JR, or equivalent grades |
| Manufacturing Standard | GB/T 6728, ASTM A500, EN 10219, JIS G3466 as per order |
| Surface Finish | Uniform hot dip galvanized finish, no bare spots, no sharp spangle buildup |
| Dimensional Tolerance | ±0.5 mm or as per applicable standard |
| Common Applications | Building frames, solar mounting, fencing, guardrails, machine structures, agricultural sheds |
General contractors and steel structure fabricators choose the hot dip galvanized rectangular and square steel tube for building frames, mezzanine floors, stair stringers, handrail posts, and equipment platforms. They appreciate the fact that no additional painting or powder coating is needed before installation in most cases, which shortens the project schedule.
Solar energy companies rely on these sections for ground-mounted photovoltaic support structures. The combination of rectangular and square profiles allows for strong racking beams, vertical posts, and diagonal bracing, while the hot dip galvanizing ensures the support system remains stable in open fields where moisture and UV exposure are constant.
Farmers and ranchers use them for livestock pens, gate frames, feedlot fences, greenhouse frames, and machinery supports. Agricultural environments are particularly hard on steel because of manure, fertilizers, moisture, and ammonia. A well-galvanized rectangular or square tube handles these conditions far better than black steel or standard painted sections.
Road and infrastructure contractors specify these tubes for guardrails, signpost structures, bridge railings, and drainage system supports. Where safety and long service life are non-negotiable, the hot dip galvanized coating is often the most cost-effective way to meet both structural and anti-corrosion requirements.
Industrial manufacturers and OEMs integrate these tubes into conveyor frames, machine guards, trailer frames, utility enclosures, and storage racking systems. Because the zinc layer covers all sides, including cut ends after proper shielding or touch-up, the finished product maintains a consistent, professional appearance and resists rust even in factory environments with high humidity or chemical exposure.
Choosing materials for a project is rarely about numbers alone. There is always an underlying question: will this stand up over time, or will I be called back to fix a problem in a few years? The hot dip galvanized rectangular and square steel tube from Tianjin YuJie Steel Pipe Trading Co., Ltd. gives builders and owners a sense of certainty. The thick, tightly bonded zinc layer means the structure will not develop ugly red rust after the first winter. It will not require sanding and repainting every spring. It will not force an operation to shut down a fence line or a solar array because a corroded post has to be dug out and replaced.
For farmers, that means more time spent on crops and livestock rather than on fence maintenance. For contractors, it means fewer warranty callbacks and a stronger reputation. For architects and engineers, it means the design intent remains intact for the full expected service life of the building. The product delivers a quiet confidence that comes from using the right material the first time.
Several types of galvanized or coated steel tube are available in the market, but they are not all the same. Pre-galvanized tube, for example, is made from steel sheet that is galvanized before the tube is formed. The welding process then burns off the zinc near the seam, leaving an unprotected strip that must be painted or touched up. Electro-galvanized tube has a thin, uniform zinc layer, but the coating is generally much thinner than hot dip galvanizing and provides less long-term corrosion resistance, especially outdoors or in humid conditions.
In contrast, the hot dip galvanized rectangular and square steel tube is fully formed first and then immersed in molten zinc. The entire section, including the weld area, corners, and interior surfaces, receives a thick coating. The zinc-iron alloy layers created during the process are bonded to the base steel, not simply applied on top. This gives the product excellent resistance to chipping, flaking, and abrasion during transport, handling, and installation.
Another differentiator is the production control at Tianjin YuJie Steel Pipe Trading Co., Ltd. The company pays close attention to dimensional accuracy, weld quality, zinc thickness, and surface finish. Each batch is checked for straightness, corner sharpness, and coating uniformity. The tubes are bundled carefully with steel straps and often with protective end caps or edge guards to prevent damage in transit. Custom cutting, special lengths, and different zinc coating weights can be arranged to match the needs of a specific project.
Q: What is the difference between hot dip galvanized and pre-galvanized rectangular tube?
A: Pre-galvanized tube is manufactured from steel sheet that already has a thin zinc coating before roll forming and welding. The heat of welding destroys the zinc layer along the seam, so the seam area is left vulnerable unless repaired with cold zinc paint. Hot dip galvanized tube is first formed and welded into its final rectangular or square shape, then fully immersed in molten zinc. This creates a thick, continuous coating over the entire surface, including the weld seam and interior walls. For outdoor and corrosive environments, hot dip galvanized tube provides significantly longer service life and better edge protection.
Q: Can the hot dip galvanized rectangular and square steel tube be welded after galvanizing?
A: Yes, it can be welded on site or in a fabrication shop. However, welding will burn off the zinc coating in the immediate area around the weld. After welding, the affected zone should be cleaned and repaired using an approved zinc-rich touch-up paint or thermal zinc spray to restore corrosion protection. It is also important to ensure proper ventilation during welding because zinc fumes can be hazardous. Many fabricators prefer to weld the structure first and then galvanize the entire assembly, but when field welding is required, local touch-up is a standard practice.
Q: How long will the zinc coating last on these tubes?
A: The service life of a hot dip galvanized coating depends on the environment. In rural or mild climates, a coating of 70–85 µm can often protect the steel for 30 to 50 years or more. In coastal or industrial environments with higher chlorides or sulfur compounds, the life may be shorter, but a heavier coating can be specified to compensate. The key advantage is that hot dip galvanizing corrodes very slowly compared to bare steel, and the alloy layers provide extra durability even after the outer pure zinc layer begins to weather.
Q: Are custom sizes and lengths available?
A: Yes. Tianjin YuJie Steel Pipe Trading Co., Ltd. can supply a wide range of outer dimensions and wall thicknesses, from small sections around 20 mm to large sections up to 500 mm or more on the long side. Standard lengths are 5.8 m, 6 m, 11.8 m, and 12 m, but custom lengths can be cut to order. Special zinc coating weights, different steel grades, and specific end finishing options like plain ends, beveled ends, or drilled holes can also be arranged for volume orders.
Q: How do I know the tubes will arrive in good condition?
A: All products are inspected before shipment for straightness, dimensional accuracy, weld quality, and coating uniformity. The tubes are then bundled with steel straps and, where necessary, protected with edge guards or end caps to prevent damage during loading and transport. For export orders, the bundles can be packed in seaworthy wooden crates or placed on fumigated wooden pallets to meet international shipping requirements. This reduces the risk of surface damage and makes unloading and handling easier at the destination.
In structural design, the rectangular and square hollow section offers high strength-to-weight ratio and excellent torsional resistance. A square tube resists bending equally in both axes, while a rectangular tube can be oriented to optimize load capacity in a specific direction. When these sections are hot dip galvanized, the coating adds a small amount of thickness to the outer and inner surfaces. For most structural calculations, this added thickness is not relied upon for strength, but it does influence fit-up tolerances and clearance dimensions. It is wise to allow a small clearance for sliding or telescoping connections between galvanized sections.
The zinc coating surface can vary from shiny and spangled to matte grey depending on the steel chemistry, cooling rate, and bath composition. This is normal and does not indicate a defect. What matters is the thickness and continuity of the coating. A dull or mottled appearance can still have excellent corrosion resistance. The product is tested using magnetic thickness gauges and visual inspection to ensure there are no bare spots, sharp spikes, or heavy zinc runs that could interfere with assembly.
For indoor applications where a smooth paint finish is desired over the galvanized surface, proper surface preparation such as sweep blasting or the use of a suitable primer is recommended. This allows the topcoat to adhere well and extends the overall protective system even further. The hot dip galvanized rectangular and square steel tube is therefore a versatile base material that can be left exposed, painted, or powder coated depending on the aesthetic and performance requirements of the project.
Beyond the tube itself, the purchasing experience plays a big role in a successful project. Tianjin YuJie Steel Pipe Trading Co., Ltd. offers clear communication, flexible order quantities, and reliable lead times. The company understands that a construction schedule cannot wait for vague delivery promises. Orders are confirmed with detailed proforma invoices, production updates, and shipping documentation. When a customer needs a mixed container of square and rectangular hollow sections in different sizes, the team can consolidate the order and pack it efficiently to save freight costs.
This practical support extends to material certificates, mill test reports, and third-party inspection coordination when required. Buyers can request documentation that verifies the steel grade, zinc coating mass, dimensional tolerances, and compliance with the specified standard. Having this paperwork in order makes it easier to pass project inspections and meet procurement requirements, especially for government or industrial contracts.
Every time a builder, farmer, or fabricator installs a hot dip galvanized rectangular and square steel tube, the decision pays off in small but significant ways. There are no rust streaks running down a white wall. No need to close a section of a livestock yard to repair a broken gate post. No worry that a solar array support might fail prematurely due to hidden corrosion. The entire structure simply does its job, season after season, with minimal attention.
That is what makes this product more than just a steel profile. It is a long-term solution dressed in the geometry of a simple square or rectangle. It combines the strength of good steel with the self-healing properties of zinc, and it comes from a supplier that treats every bundle as part of its own reputation. When the project demands structural integrity plus weather resistance, this is the material that quietly delivers both.
